Visco-Elastic Dampers
Viscoelastic Technology for Reliable Emergency Stops
Our viscoelastic shock absorbers offer robust, maintenance-free solutions specifically engineered for emergency stop systems in heavy industrial environments.
These compact units are easy to integrate into both new and existing setups, delivering outstanding energy absorption performance with optimized stroke lengths. Their efficient design ensures maximum protection of equipment during high-impact events, reducing the risk of damage and downtime.
Built to minimize noise, vibration, and mechanical wear, our shock absorbers contribute to safer, quieter operations and extended service life of surrounding components. Their straightforward installation and reliability make them ideal for demanding applications across sectors such as manufacturing, material handling, and heavy machinery.
Each unit is designed with durability and adaptability in mind. For specialized needs, we also offer custom-engineered solutions—providing flexibility to meet unique application requirements while maintaining consistent performance and peace of mind.
Viscoelastic Damper Performance Overview

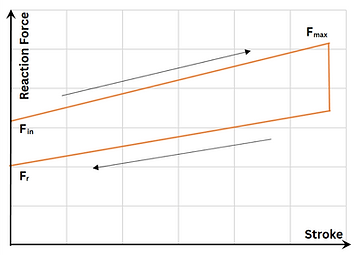

The graph illustrates our viscoelastic damper's performance under cyclic loading. The orange hysteresis loop represents energy dissipation: the larger the loop, the greater the energy dissipated, which is crucial for reducing vibrations and controlling motion.
Key performance indicators from the graph include:
-
Fmax: The maximum force experienced by the damper during the cycle.
-
Fin: The force at the start of the inward stroke.
-
Fr: The residual force at the end of the outward stroke.
Key Results and Performance Highlights:
-
Effective Energy Dissipation: The large hysteresis loop indicates high energy dissipation for efficient vibration control.
-
Force-Displacement Relationship: Loop shape shows reaction force vs. displacement, indicating stiffness and damping.
-
Maximum Force Control: Fmax indicates capacity to handle peak forces, ensuring structural integrity.
-
Hysteresis Shape: Indicates viscoelastic nature.
Product Portfolio
Liquid Spring
Liquid springs are compact cylinders that utilize compressed fluid to efficiently store energy and dampen vibrations. Their small size belies their high energy absorption capacity, making them well-suited for applications where space is limited, such as in vehicle suspensions and precision machinery.
Shock Cartridge
Shock cartridge is a sealed, cylindrical unit essential for suspension systems. Inside, a piston moves through fluid (oil or gas) to resist motion. This controlled resistance dissipates energy from impacts and vibrations. The result is crucial damping for stability and a smoother ride or operation.
Technical Specification Chart of Visco-Elastic Dampers
Accessories / End Fittings for Visco-Elastic Dampers
Sqaure Flanges
Optional Threading on Outer Body
Have more questions? Email us at info@shockbuffer.com
